背景，公网服务器centos7，穿透到内网电脑windos10

一、文件下载

1、centos7文件下载

https://github.com/fatedier/frp/releases/download/v0.34.3/frp_0.34.3_linux_amd64.tar.gz

2、windos10软件下载

https://github.com/fatedier/frp/releases/download/v0.34.3/frp_0.34.3_windows_amd64.zip

二、安装

1、centos7安装

（a)将包frp_0.34.3_linux_amd64.tar.gz上传到/opt目录

tar -zxvf  frp_0.34.3_linux_amd64.tar.gz
mv frp_0.34.3_linux_amd64 frp_0.34.3
cd frp_0.34.3
vi frps.ini

配置文件如下

[common]
bind_port = 7000
token=12345678

dashboard_port = 7500
dashboard_user = admin
dashboard_pwd = admin9999

vhost_http_port = 10080
vhost_https_port = 10443

# frp日志配置
log_file = /opt/frp_0.34.3/logs/frps.log
log_level = info
log_max_days = 3

(b)创建店动文件

vi start.sh

./frps -c frps.ini &

(c)配置nginx

server {
    listen 80;
    server_name frp.my.com;

    location / {
	proxy_pass http://127.0.0.1:10080/;
	proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header Host $http_host;
        proxy_set_header X-NginX-Proxy true;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_max_temp_file_size 0;
        proxy_redirect off;
        proxy_read_timeout 240s;
    }
}

(d)启动

sh start.sh

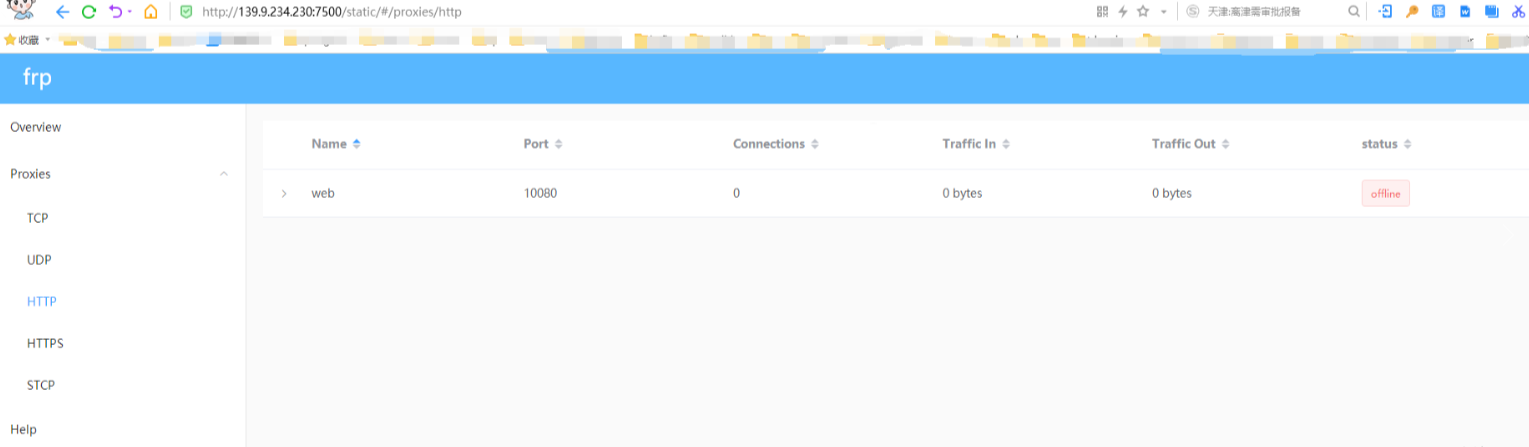

打开 http://192.168.10.3:7500/,可以查看管理平台

2、windos10安装

（a)解压安装包frp_0.34.3_windows_amd64.zip

 (b)修改配置文件frpc.ini

[common]
server_addr = 192.168.10.3
server_port = 7000
token = 12345678

[web]
type = http
local_port = 9093
custom_domains = frp.my.com

（c)新建启动脚本 start.bat

frpc.exe -c frpc.ini

（d)运行start.bat ，如下显示

D:\tool\frp_0.34.3_c>frpc.exe -c frpc.ini
2022/01/10 09:43:31 [I] [service.go:288] [46da0dc4372c7d41] login to server success, get run id [46da0dc4372c7d41], server udp port [0]
2022/01/10 09:43:31 [I] [proxy_manager.go:144] [46da0dc4372c7d41] proxy added: [web]
2022/01/10 09:43:31 [I] [control.go:180] [46da0dc4372c7d41] [web] start proxy success

三、测试

http://frp.my.com/shop/Tt/testParam

就可以跳到你本地了
